Perimeter Wall

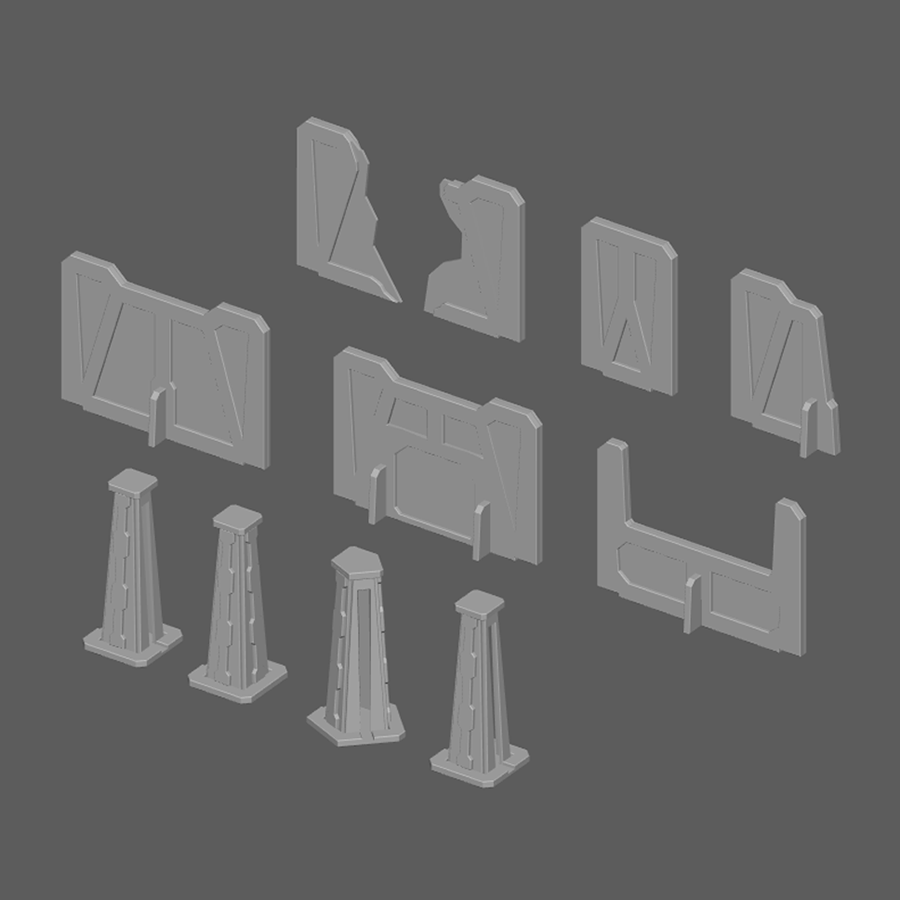

Four kinds of stanchion and six kinds of wall segment, including a personnel door, a MagLev wall and a destroyed section.

Steps
10
Use for
Perimeter Wall - Abandoned, Perimeter Wall - Neutral

Download PDF

Perimeter Wall

Before you start

  • White PVA craft glue. We use Aleene's Turbo Tacky: the bottle for big jobs, a glue pen for fine beads.
  • Small clamps to hold pieces while they dry.
  • Precision tweezers or a pointed tool for punching out small pieces and slots.

Tips & tricks

  • The front of a sheet is the side the die cut went into; it has the rolled edges. The back is flat.
  • Pieces punch out most easily when pushed from the back.
  • Fold every score fully so its edge is crisp and straight. It's cardboard, so it sometimes needs a little help.
  • Be a little generous with glue. It wipes up with a dry or slightly damp paper towel and dries clear.
  • Glue marks and their targets always match in shape and size.

  1. Stanchions

  2. Step 1 of 10 Straight stanchion

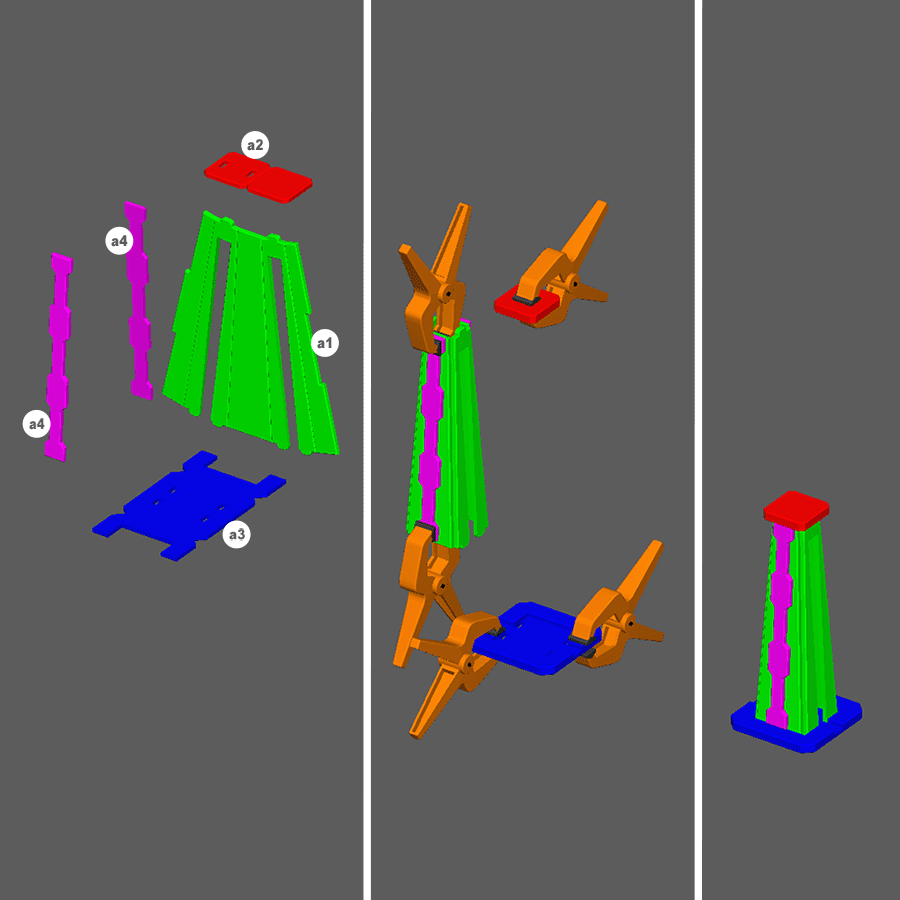

    Step 1 diagram
    1. Fold, glue, and clamp pieces a2 and a3 as shown.
    2. Fold piece a1 as shown. Glue pieces a4 to front and back of piece a1 as shown.
    3. Make sure that piece a4 is aligned to the top edge of piece a1.
    4. Glue pieces together as shown. Repeat two more times.

  3. Step 2 of 10 60° stanchion

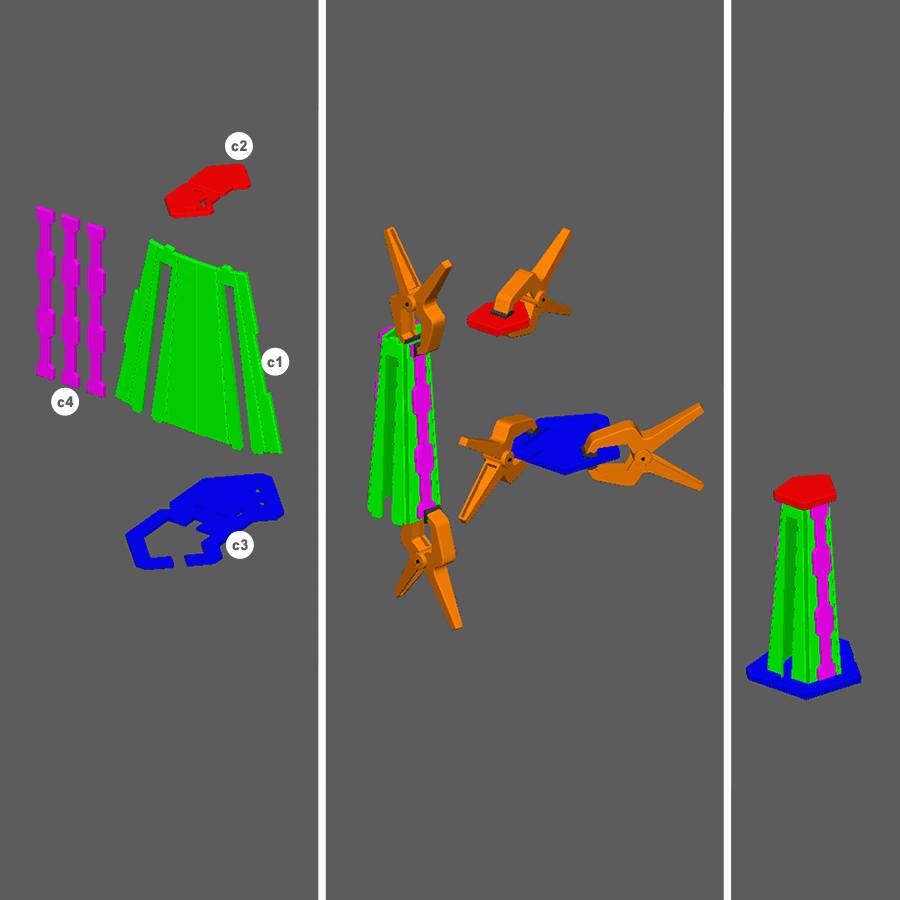

    Step 2 diagram
    1. Fold, glue, and clamp pieces c2 and c3 as shown.
    2. Fold piece c1 as shown.
    3. Glue pieces c4 to front and back of piece c1 as shown, making sure c4 is aligned to the top edge.
    4. Glue pieces together as shown.
    5. Repeat two more times.

  4. Step 3 of 10 90° stanchion

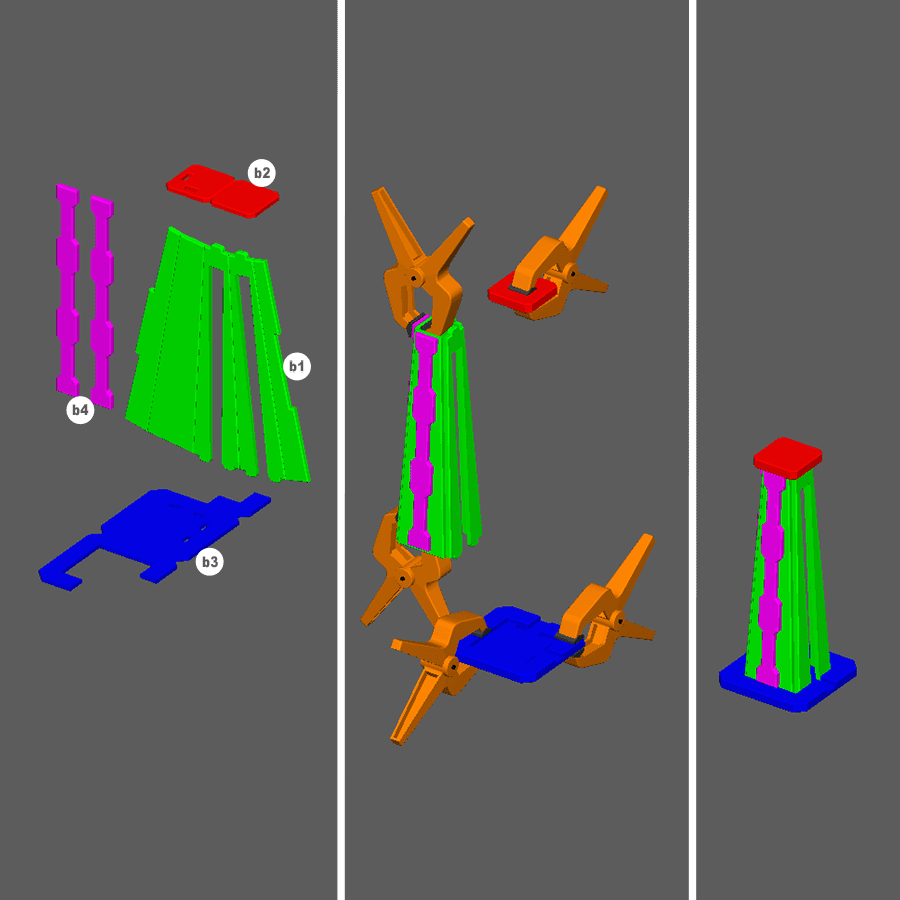

    Step 3 diagram
    1. Fold, glue, and clamp pieces b2 and b3 as shown.
    2. Fold piece b1 as shown.
    3. Glue pieces b4 to front and back of piece b1 as shown, making sure b4 is aligned to the top edge.
    4. Glue pieces together as shown.
    5. Repeat two more times.

  5. Step 4 of 10 "T" stanchion

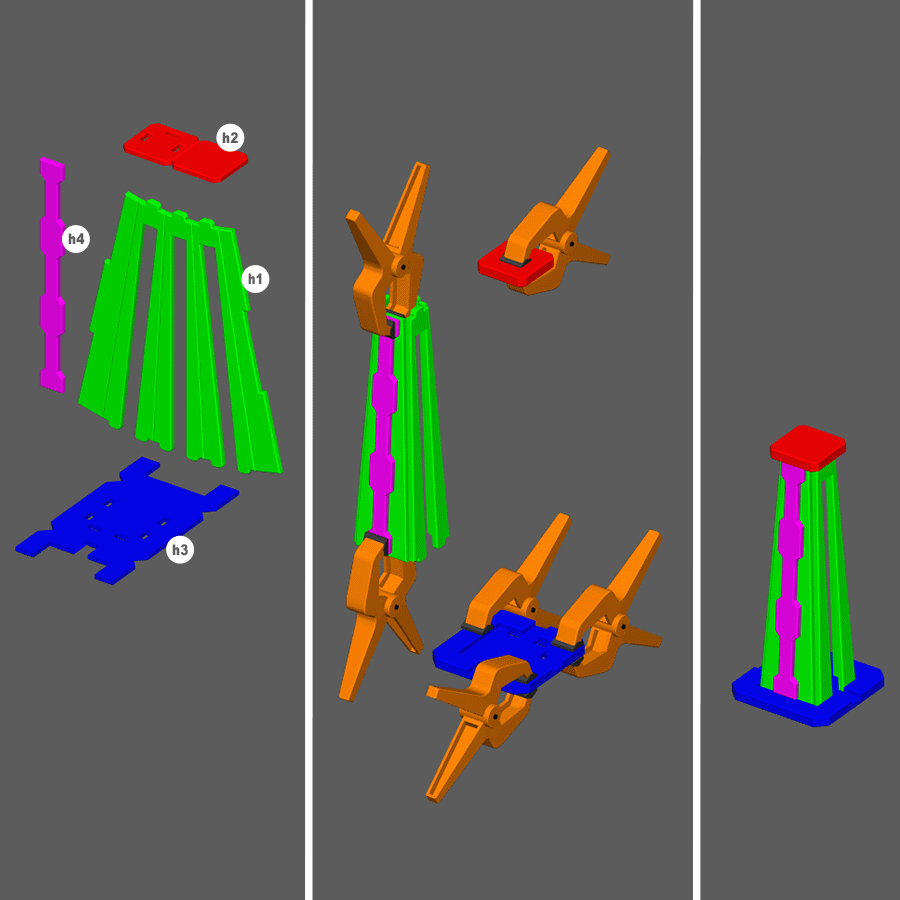

    Step 4 diagram
    1. Fold, glue, and clamp pieces h2 and h3 as shown.
    2. Fold piece h1 as shown.
    3. Glue piece h4 to front of piece h1 as shown, making sure h4 is aligned to the top edge.
    4. Glue pieces together as shown.
    5. Repeat one more time.

  6. Wall segments

  7. Step 5 of 10 Wall segment

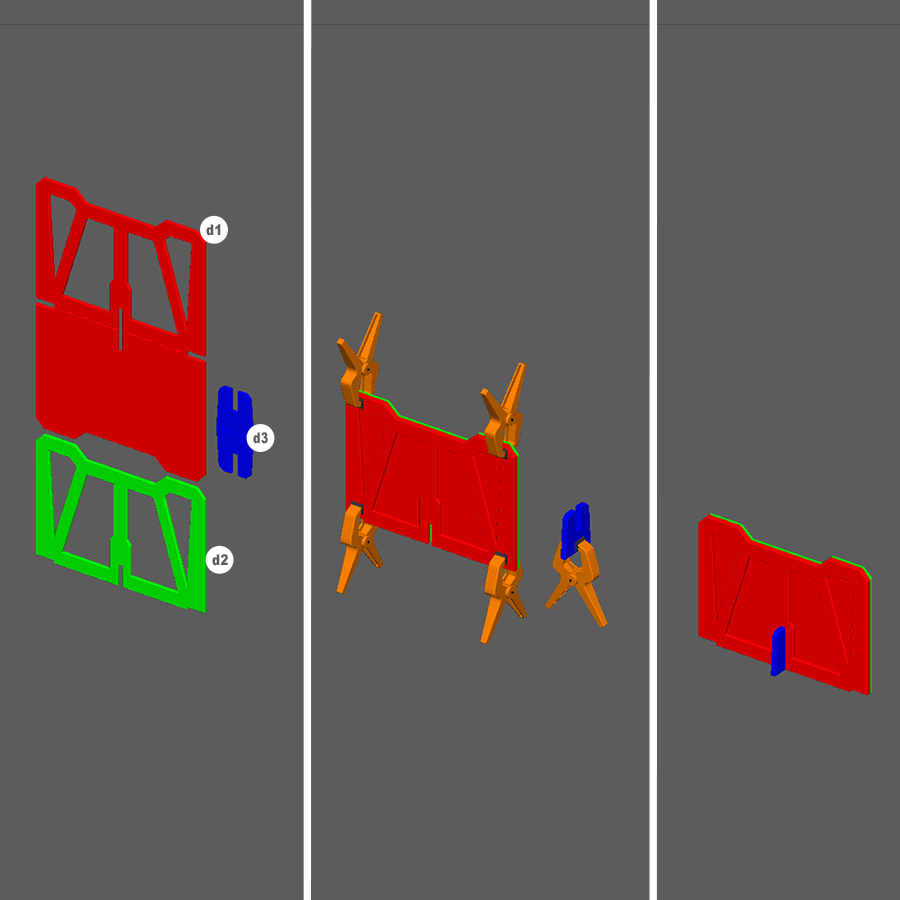

    Step 5 diagram
    1. Fold, glue, and clamp all pieces as shown.
    2. Glue piece d3 into the d1/d2 assembly so that it's flush on the bottom.
    3. Repeat three more times.

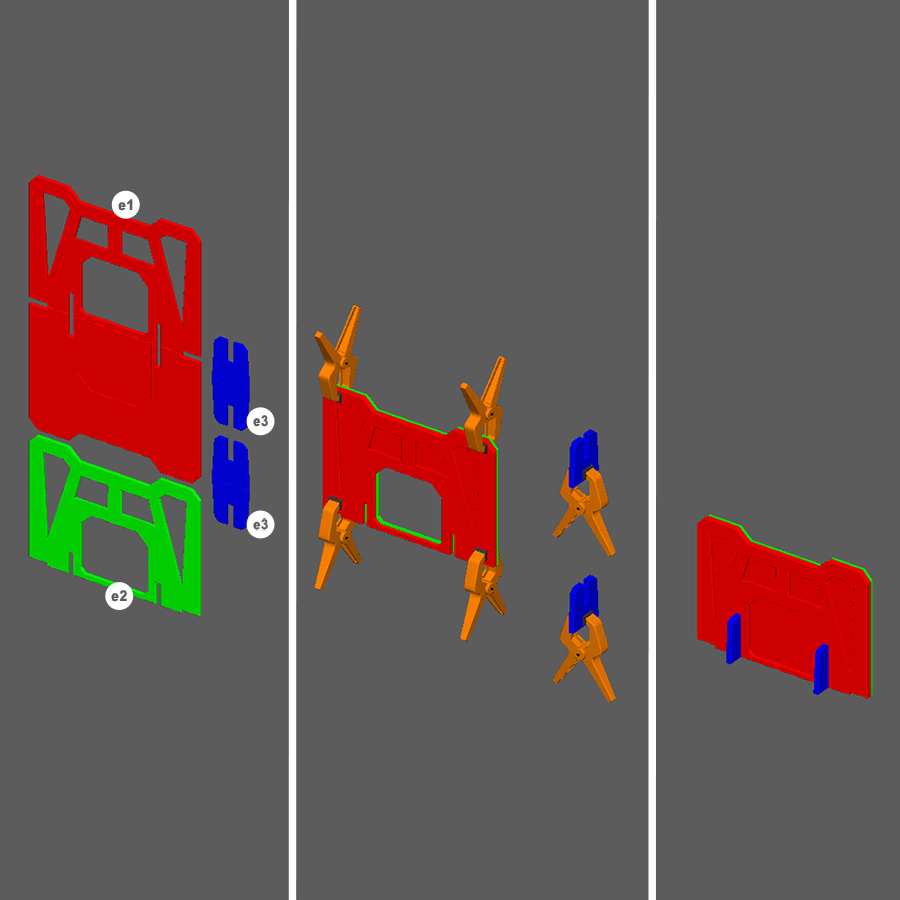

  8. Step 6 of 10 Personnel wall

    Step 6 diagram
    1. Pop out the door from piece e1.
    2. Fold, glue, and clamp all pieces as shown.
    3. Glue both e3 pieces into the e1/e2 assembly so that they're flush on the bottom.

    Note Once the glue is dry, the door piece is meant to slide in and out of the wall through the opening on the bottom.

  9. Step 7 of 10 MagLev wall segment

    Step 7 diagram
    1. Fold, glue, and clamp all pieces as shown.
    2. Glue piece d3 into the d1/d2 assembly so that it's flush on the bottom.

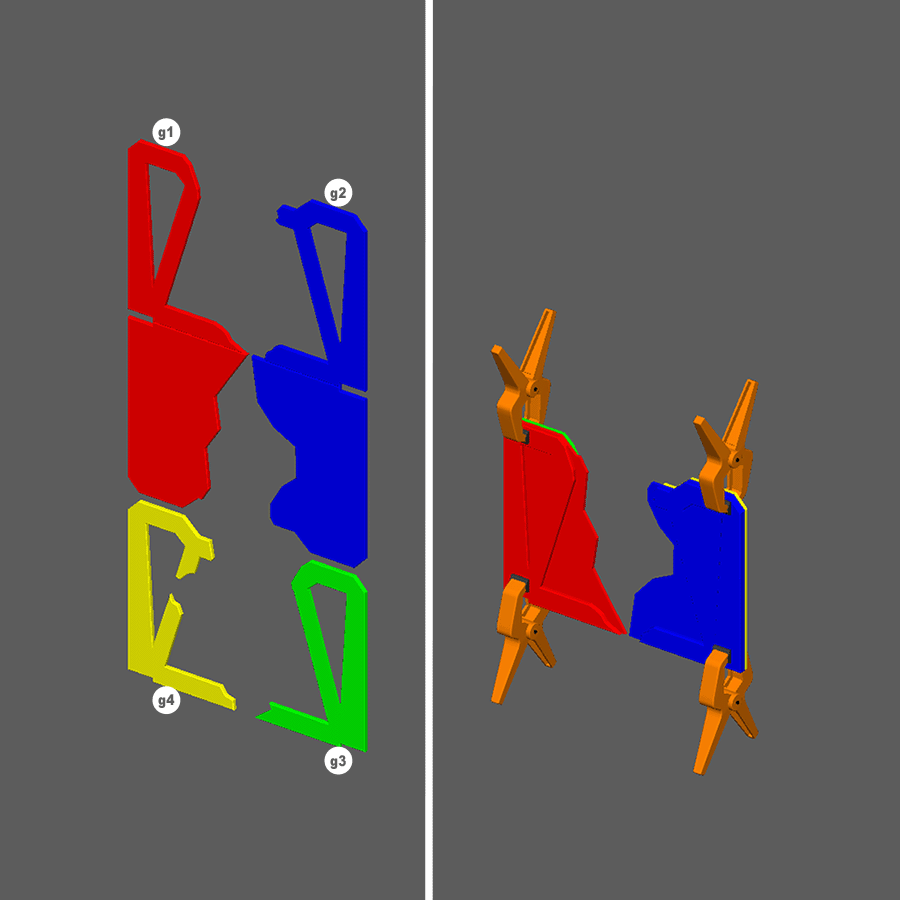

  10. Step 8 of 10 Destroyed wall segment

    Step 8 diagram
    1. Fold and glue pieces g1 and g2.
    2. Glue and clamp piece g4 to piece g2.
    3. Glue and clamp piece g3 to piece g1.

    Note The colors are confusing. Green matches with red, and blue with yellow.

  11. Step 9 of 10 End wall segment

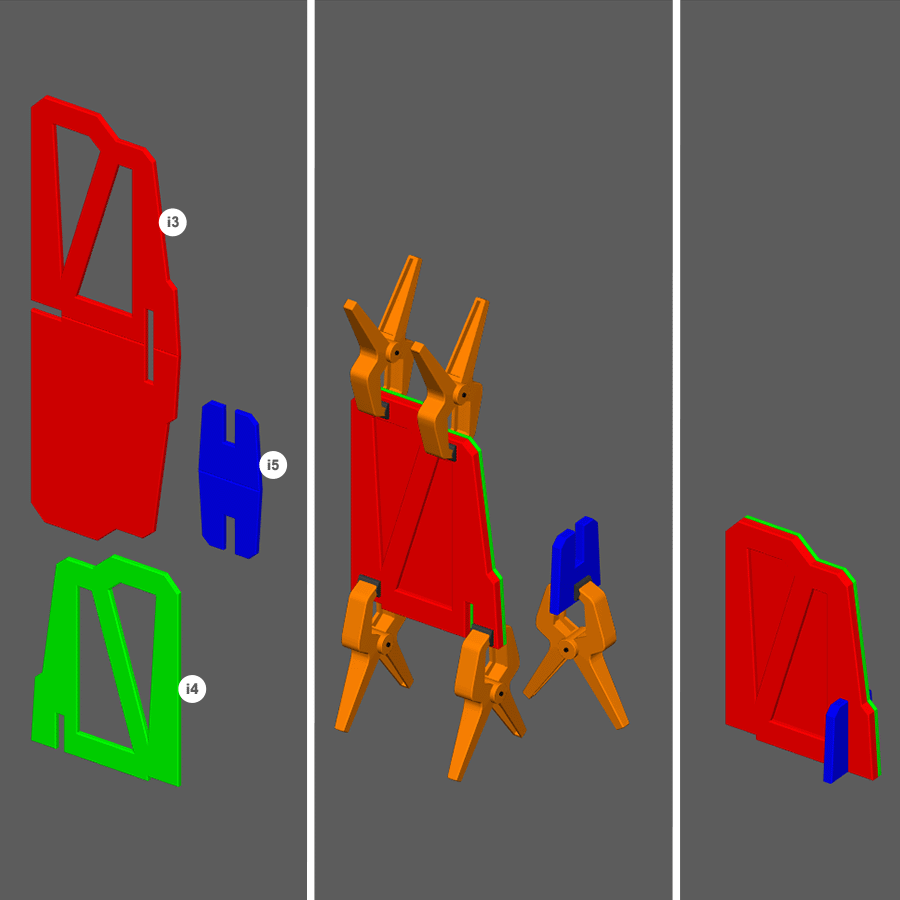

    Step 9 diagram
    1. Fold, glue, and clamp all pieces as shown.
    2. Glue piece i5 into the i3/i4 assembly so that it's flush on the bottom.
    3. Repeat once more.

  12. Step 10 of 10 Half wall segment

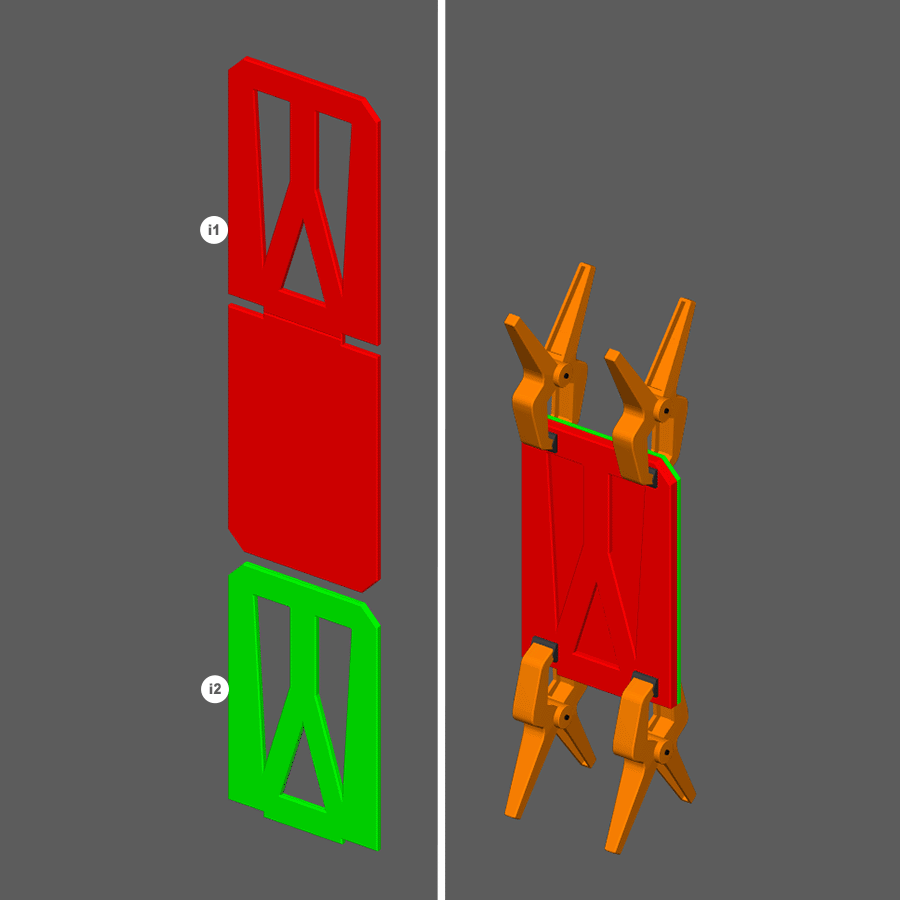

    Step 10 diagram
    1. Fold, glue, and clamp all pieces as shown.
    2. Repeat once more.
